Resin SZUV-C6006-transparent
Introduction of 3D Printing Materials
Characteristics
SZUV-C6006
PRODUCT DESCRIPTION
SZUV-C6006 is a clear SL resin which has accurate and durable features. It is designed for solid state SLA printers.
SZUV-C6006 can be applied in master patterns, concept models, general parts and functional prototypes in the field of automotive, medical and consumer electronics industries.
TYPICAL FEATURES
-Medium viscosity, so easy for recoating, easy to clean parts and machines
-Improved strength retention, improved dimensions retention of parts in humid condition
-Good strength, need minimal part finishing
TYPICAL BENEFITS

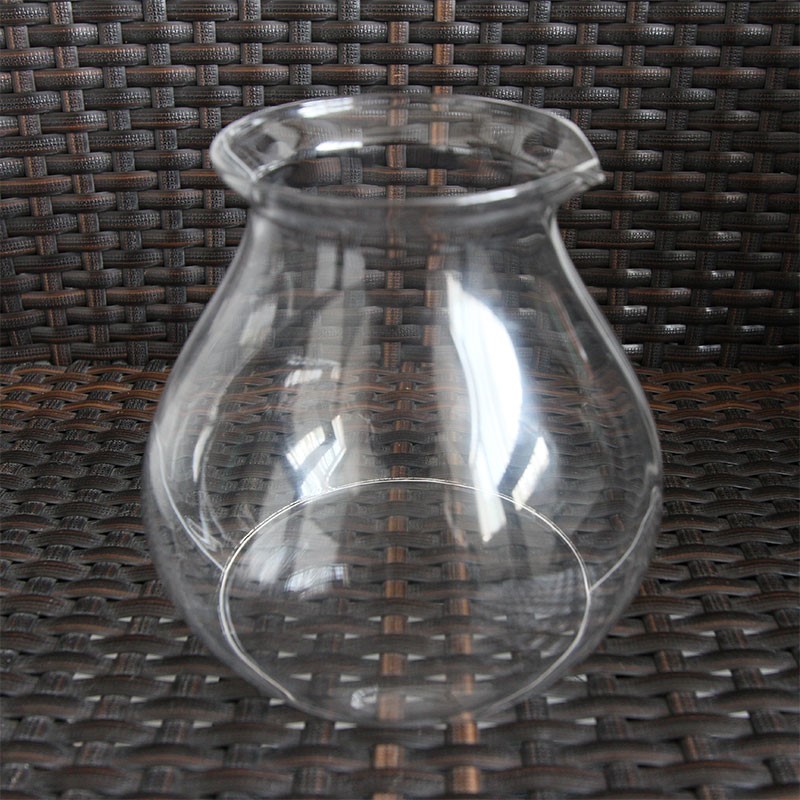

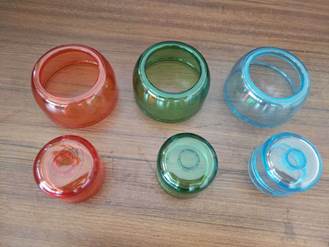

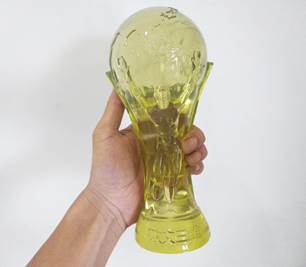

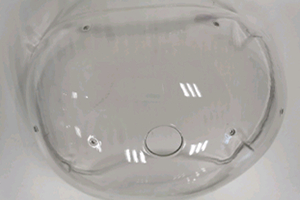

-Superior clear, building parts with outstanding clarity and excellent accuracy
-Need less part finishing time, easier post-curing
Physical Properties (Liquid)
| Appearance | Clear |
| Density | 1.12g/cm3 @ 25 ℃ |
| Viscosity | 408cps @ 26 ℃ |
| Dp | 0.18 mm |
| Ec | 6.7 mJ/cm2 |
| Building layer thickness | 0.1mm |
Mechanical Properties (Post-Cured)
| MEASUREMENT | TEST METHOD | VALUE |
| 90-minute UV post-cure | ||
| Hardness, Shore D | ASTM D 2240 | 83 |
| Flexural modulus, Mpa | ASTM D 790 | 2,680-2,790 |
| Flexural strength, Mpa | ASTM D 790 | 75- 83 |
| Tensile modulus, MPa | ASTM D 638 | 2,580-2,670 |
| Tensile strength, MPa | ASTM D 638 | 45-60 |
| Elongation at break | ASTM D 638 | 11-20% |
| Impact strength, notched lzod, J/m | ASTM D 256 | 38 - 48 |
| Heat deflection temperature, ℃ | ASTM D 648 @66PSI | 52 |
| Glass transition, Tg |
DMA, E' peak |
62 |
| Available in single scan speed, mm/s | Suggested single scanning speed, mm/s | ||
| resin temperature | 18-25℃ | 23℃ | without heating |
| environment humidity | 38%below | 36%below | |
| laser power | 300mw | 300mw | |
| support scanning speed | ≤1500 | 1200 | |
| scanning interval | ≤0.1mm | 0.08mm | |
| Contour scanning speed |
≤7000 | 2000 | |
| Fill scanning speed | ≥4000 | 7500 |
Write your message here and send it to us
