Handheld 3d Scanner- 3DSHANDY-22LS
Introduction of handheld laser 3D scanner
3DSHANDY-22LS Characteristics
3DSHANDY-22LS adopts the latest handheld design, has light weight (0.92kg), and is ready to use.
It has 14 laser lines + additional 1 beam scanning deep hole + additional 7 beam to scan details, a total of 22 laser lines.
It has fast scanning speed, high precision, strong stability, dual industrial cameras, automatic marker splicing technology, self-developed scanning software, and ultra-high scanning accuracy and work efficiency.
It has been widely used in the field of reverse engineering and three-dimensional inspection. The scanning process is flexible and convenient, suitable for various complex application scenarios.
● High precision
The single-machine measurement accuracy is as high as 0.01mm, and large and medium-sized objects can be easily scanned without the help of a photogrammetric system
● Light source
22 blue laser lines, faster scanning speed and higher precision
● Fast measurement
The number of marking points is halved, 14 laser lines + 1 scanning depth + 7 scanning details
● Fine mode
Switch between fine and single laser mode to easily scan complex surfaces and dead corners of deep holes
● Flexible operation
Industrial design, small size, light weight (0.92kg), flexible and convenient, easy to operate, greatly improve work efficiency, new independent research and development technology is guaranteed
● Strong adaptability
Single hand operation, not affected by the environment, not limited by the workpiece structure and user ability
● Real-time visualization
The computer screen displays the operation interface in real time to accurately check defects and make up omissions
● Industrial design
Light weight (0.92kg), easy to carry, ready to use, high efficiency, up-to-date independent research and development technology is guaranteed
Application Cases

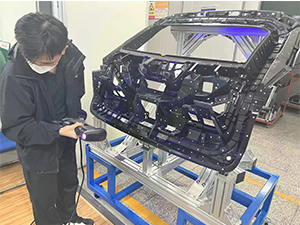

Automobile Industry
· Competitive product analysis
· Automobile modification
· Decoration customization
· Modeling and design
· Quality control and parts inspection
· Simulation and finite element analysis

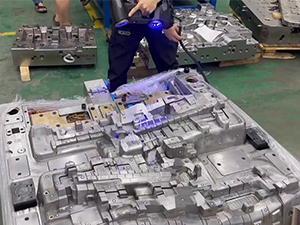

Tooling Casting
· Virtual assembly
· Reverse engineering

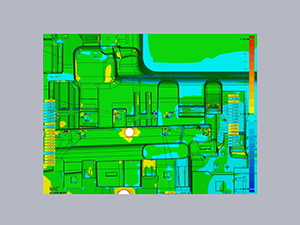

· Quality control and inspection
· Wear analysis and repair
· Jigs and fixtures design, adjustment
Aeronautics
· Rapid prototyping
· MRO and damage analysis
· Aerodynamics & stress analysis
· Inspection & adjustment of parts installation
3D Printing
· Molding inspection
· Reverse design of molding to create CAD data
· End products comparison analysis
· Scanned data can be used for 3D printing directly
Other Area
· Education and scientific research
· Medical and health
· Reverse design
· Industrial design
| Product model | 3DSHANDY-22LS | ||
| Light source | 22 blue laser lines (wavelength: 450nm) | ||
| Measuring speed | 1,320,000points/s | ||
| Scanning mode | Standard mode | Deep hole model | Precision mode |
| 14 crossed blue laser lines | 1 blue laser line | 7 parallel blue laser lines | |
| Data precision | 0.02mm | 0.02mm | 0.01mm |
| Scanning distance | 330mm | 330mm | 180mm |
| Scanning depth of field | 550mm | 550mm | 200mm |
| Resolution | 0.01mm (max) | ||
| Scanning area | 600×550mm (max) | ||
| Scanning range | 0.1-10 m (expandable) | ||
| Volume precision | 0.02+0.03mm/m | ||
| 0.02+0.015mm/m Combined with HL-3DP 3D photogrammetry system (optional) | |||
| Support for data formats | asc, stl, ply, obj, igs, wrl, xyz, txt etc., customizable | ||
| Compatible software | 3D Systems (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage), etc. | ||
| Data transmission | USB3.0 | ||
| Computer configuration (optional) | Win10 64-bit; Video memory: 4G; processor: I7-8700 or above; memory: 64 GB | ||
| Laser safety level | ClassⅡ (Human eye safety) | ||
| Authentication number (Laser certificate): LCS200726001DS | |||
| Equipment weight | 920g | ||
| External dimension | 290x125x70mm | ||
| Temperature / humidity | -10-40℃; 10-90% | ||
| Power source | Input:100-240v, 50/60Hz, 0.9-0.45A; Output: 24V, 1.5A, 36W(max) | ||
